Measurements

[Cnadian Fizz]

Does anybody have measurements of the #3? I want to build a custom stand and I need measurements of the bottom and caster spacing. I e-mailed Smokin' it but have got no reply so I was hoping somebody here can help me.
Thank you
Fizz



[shomesmoke]

I have my #3 mounted on a table so its kind of hard to measure but I will give ya what I can and maybe it will help. These measurements are all outside to outside the legs measure 22 long X 16 3/4 wide, the legs are 1 1/2 X 1 1/2 square with a threaded hole in the bottom for the caster. The overall size of the smoker is 27L X 17W X 25T.

Mark



[Cnadian Fizz]

Thanks Mark It does help.



[BHamel]

Sorry that we haven't gotten back to you yet.  The measurements are as follows:

1.  Width outside of leg to outside of leg is 16-7/8"
2.  Front to back leg outside to outside is 21-7/8"
3.  The legs are 1-1/2" x 1-1/2" square

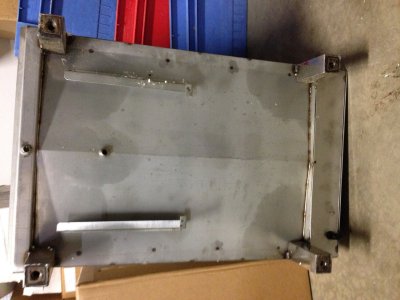

I have included a picture of the bottom.

Thanks,



[Cnadian Fizz]

That is perfect. Thank you very much. I am a machinist and I like to build things that is why I want to build my own stand. Would it be possible for you to tell me the size of the threads on the bottom for the casters?
That would help so much.
Your product to me looks like the best one on the market and you can expect an order in the spring.

Fizz



[puddle jumper]

Hey Fizz,,

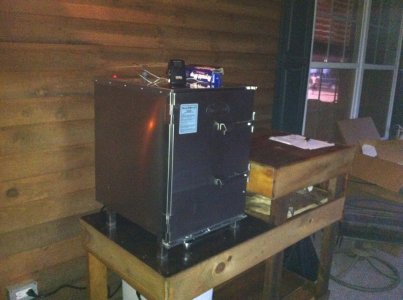

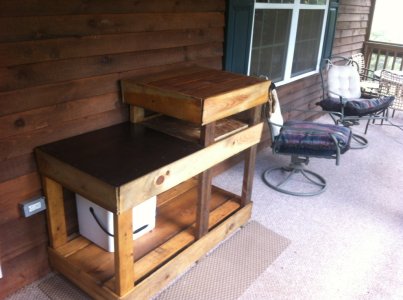

Here is the one I made for mine,,,

Its just a idea for you but one of the things i did not have on mine that im going to add is a shelf that pulls out under the door to catch drippings when you are working with the door open and the grates slid out,,
PJ



[Smokster]

The inside dimensions are 15" x 20 x 22" with a total weight of 135 pounds. The outside dimensions are 17" x 28" x 29-1/4",
